Large standard MS-5137/MS-5141

Conveyor type

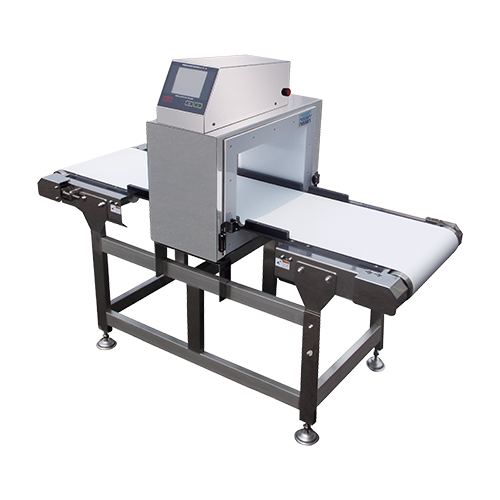

Large standard MS-5137/MS-5141

  1. Easy operation: The integrated high-definition color touch panel ensures easy operation.
  2. Higher sensitivity: Frequencies can be selected by various product types, leading to reduced product effects and higher practical sensitivity.
  3. Improved register function: Much more data can be registered and now displayed using Chinese characters. Registered data and settings can be saved to USB memory, and also output to a dedicated printer.
  4. HACCP-compliant: Open-type conveyor and round pipe frame.

Major applications
Packaged goods (including prepared foods, boxed lunches, and sweets), Bulk products
Detectable foreign objects
General metals including iron, stainless steel, and aluminum

Standard Specifications

Belt width 300mm 400mm  500mm
Total conveyor length  1,500mm
Belt speed 20m/min（50Hz）、24m/min（60Hz）
At metal detection Automatic conveyor stop or automatic removal (optional)
Power supply Three-phase 200VAC, 50/60Hz
Weight 150kg  170kg   190kg

※Compatibility with various overseas power supplies also available.

Outline Drawings

Dimensions list

MS-5137

Belt width Search coil model Dimensions
A B C D E F
300 L1N3－03013 300 425 440 232 100 1127
400 L1N3－04013 350 475 540 232 100 1127
500 L1N3－05018 400 525 640 232 150 1197
600 L1N3－06023 450 575 740 252 230 1247

Unit(mm)

MS-5141

Belt width Search coil model Dimensions
A B C D E F
300 L1J1-03013 275 305 440 200 100 1127
Q1G-03013 323 326 440 350 100 1197
400 L1J1-04013 325 355 540 200 100 1127
Q1G-04013 373 376 540 350 100 1197
500 L1J1-05018 375 405 640 200 150 1177
Q1G-05018 423 426 640 350 150 1247
600 L1J1-06023 425 455 740 250 200 1227
Q2G-06023 473 476 740 350 200 1297

Unit(mm)
