Alpas-F Series Shoot type
Alpas-F Series Shoot type
- With high sensitivity, can detect Fe or SUS foreign objects in products without being affected by aluminum foil packages/ trays, salt density, or temperature change.
- Stable detection even of foreign objects such as broken wires that can affect detection sensitivity depending on the direction.
- Main inspection targets
- Products packaged in aluminum foil: Candies, serially-packaged soups, gums, packaged seasonings, etc. Salty products: Heavily salted foods, miso, etc.
- Detectable foreign objects
- Iron, stainless steel
Standard Specifications
| Type | Shoot type |
|---|---|
| Model | MS-4551-10S-□□ |
| Control unit model | ND-440UV |
| Search coil model | F4AW-010□□ |
| Detection (passage) height | 20 mm (Variable range: 10 to 50 mm) |
| Detection sensitivity* | Feφ0.4 (Reference value, Stainless steel wire φ0.28×2mm) |
| Machine length | 735mm |
| When metal is detected | Alarm (external contact output) |
| Power supply | Single phase 100 VAC, 0.4A, 30W, 50/60Hz |
| Weight | 60kg |
* Maximum detection sensitivity. Under our standard condition. The detection sensitivity differs according to
product and operating environment.
◦The coil height is indicated in □□. Example: 01=10mm, 03=30mm, 05=50mm

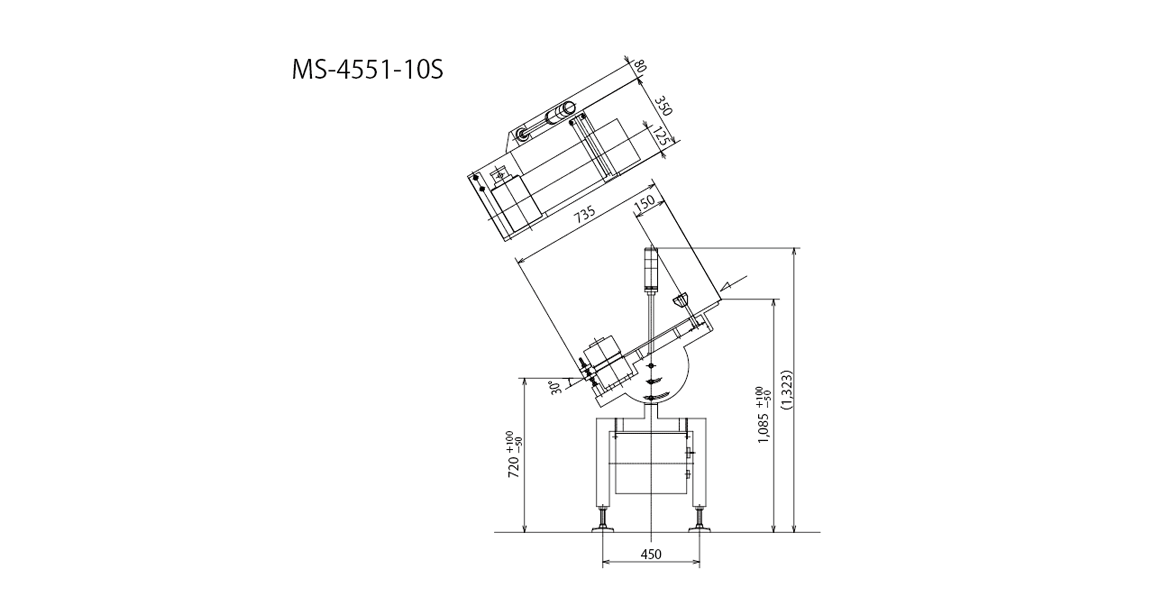

Outline Drawings
