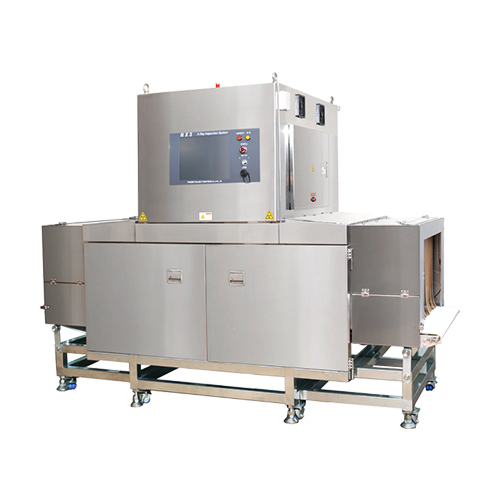

NX3-709025
NX3-709025
- Advanced image processing software and a high resolution line sensor ensure high sensitivity detection.
- Easy to view and easily operated interactive screen using a 15-inch LCD touch panel.
- A wide variety of management data (various types of data for NG images, event logs, trend graphs, etc.) is standard equipment.
- Full support for traceability as data can be saved to USB flash memory.
- Main inspection targets
- Large pouch products, products in cardboard (including full loaves of bread, refined sugar, flour, grains, edible meat, packaging materials, plastic pallets, etc.)
- Detectable foreign objects
- General metals including iron, stainless steel, and aluminum; non-metals including rocks, bones, glass, and ceramics
Standard Specifications
| Operation image display | 15-inch TFT color LCD touch panel |
|---|---|
| Inspection dimensions / delivery weight | W690mm × H350mm / up to 30kg |
| Belt width | 910mm |
| Belt speed | 5 to 30m / min, variable speed |
| System length / Weight | 1700mm / approx.500kg |
| Power supply | Single-phase 200VAC, 1.5kVA, 50/60Hz |
| Installation environment | Temperature: 0 to 35°C, Humidity 30 to 85 % |
※Compatibility with various overseas power supplies also available.
Outline Drawings
