NX3-909025 (double tube type)
Special short machine length specification
NX3-909025 (double tube type)
- Advanced image processing software and a high resolution line sensor ensure high sensitivity detection.
- Easy to view and easily operated interactive screen using a 15-inch LCD touch panel.
- A wide variety of management data (various types of data for NG images, event logs, trend graphs, etc.) is standard equipment.
- Full support for traceability as data can be saved to USB flash memory.
- With the double tube type, this detector achieves high sensitivity detection regardless of its large size.
- Main inspection targets
- Wide and thin goods lines, materials lines (including raw materials, hamburger lines, and various portions, etc.)
- Detectable foreign objects
- General metals including iron, stainless steel, and aluminum; non-metals including rocks, bones, glass, and ceramics
Standard Specifications
| Operation image display | 15-inch TFT color LCD touch panel |
|---|---|
| Inspection dimensions / delivery weight | W900mm × H200mm / up to 20kg |
| Belt width | 1060mm |
| Belt speed | 5 to 30m / min, variable speed |
| System length / Weight | 2400mm / approx.850kg |
| Power supply | Single-phase 200VAC, 2kVA, 50/60Hz |
| Installation environment | Temperature: 0 to 35°C, Humidity 30 to 85 % |
※Compatibility with various overseas power supplies also available.

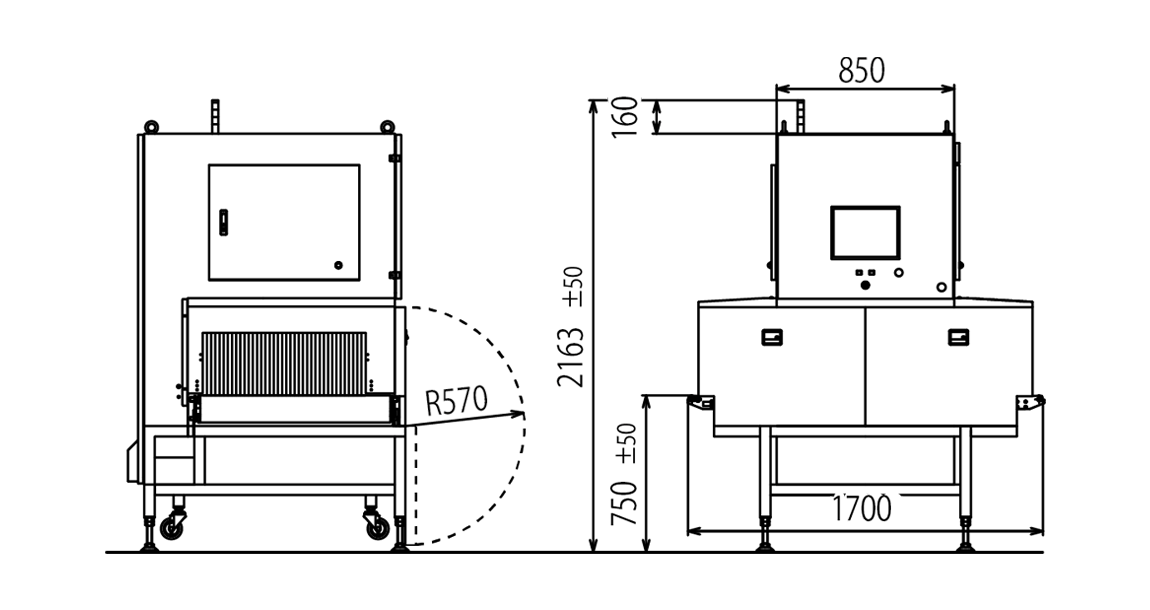

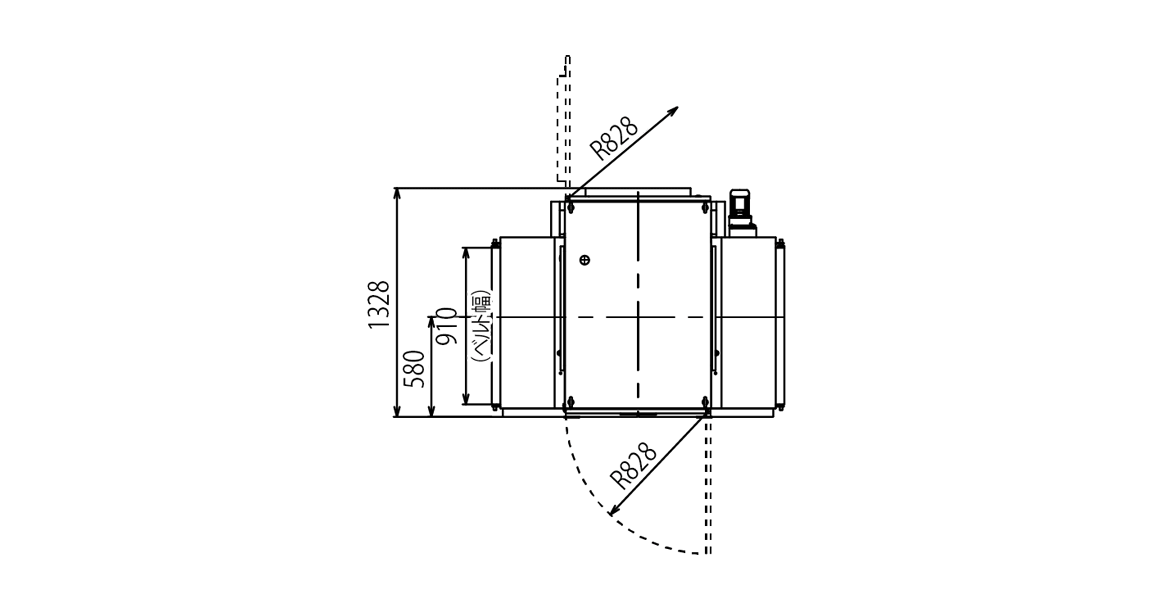

Outline Drawings
