Pinhole checker PCS-3001

Special applications

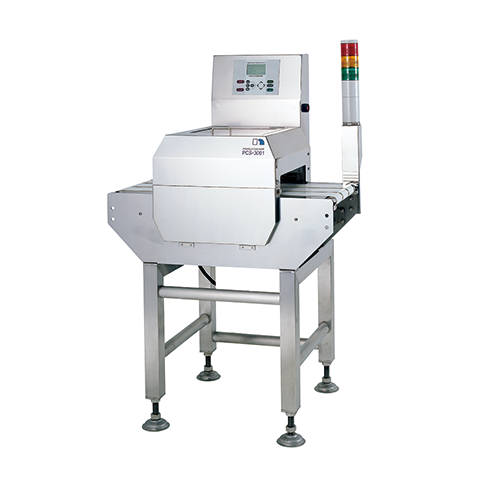

Pinhole checker PCS-3001

  1. Special electrodes completely trace even hard-to-inspect parts of targets and enable inspection at low voltage.
  2. Multi-step electrodes enable the entire target surface to be traced in each step via the detection flow in the detector.
  3. An auto setting function enables an optimal detection level to be set automatically, offering stable, continuous sensitivity.
  4. A register/count function enables various histories to be checked, ensuring traceability.

Main inspection targets
Packaged goods (yogurts, jellies, packed rice), etc.
Detectable foreign objects
Pinholes, defective sealing

Standard Specifications

Belt width 250mm 350mm
System length 740mm
Processing speed 100pcs / min
Power supply Single-phase 100VAC, 50/60 Hz

※Compatibility with various overseas power supplies also available.

Outline Drawings
