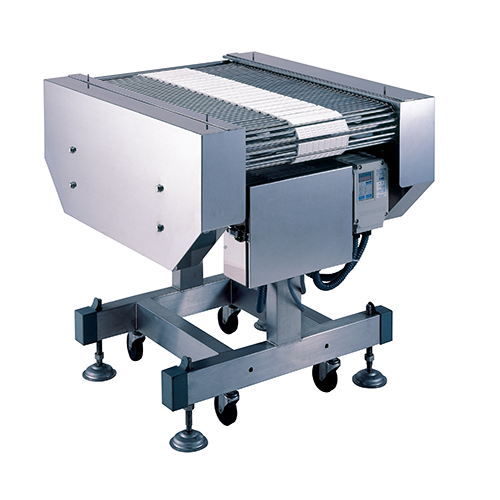

Caterpillar-type separator MK-118
Silent caterpillar separator
Caterpillar-type separator MK-118
- A silent type suitable for quiet production lines.
- OK/NG goods can be screened in conjunction with metal detector and weight checker.
- Stable and smooth screening is possible at high speed, up to 300 pieces per minute.
(For 100 mm-long products at a 100 mm interval at a delivery speed of 60 m/min)
Standard Specifications
| Type | Caterpillar width （mm） |
Pitch （mm） |
Directions | Target dimensions （mm） |
Max. load |
Delivery speed （m/min） |
Power supply | Weight （kg） |
|
|---|---|---|---|---|---|---|---|---|---|
| A | -30 | 150 | 300 | 3 | Width：145 Length：300 （MAX） |
2kg (100g/cm) |
60m/min 50/60Hz （MAX） |
AC100V 50/60Hz |
95(approx.) |
| -40 | 400 | - | |||||||
| -50 | 500 | - | |||||||
| B | -40 | 200 | 400 | 3 | Width：190 Length：330 （MAX） |
2kg (70g/cm) |
60m/min 50/60Hz （MAX） |
AC100V 50/60Hz |
140(approx.) |
| -50 | 500 | - | |||||||
| -60 | 600 | - | |||||||
※Compatibility with various overseas power supplies also available.

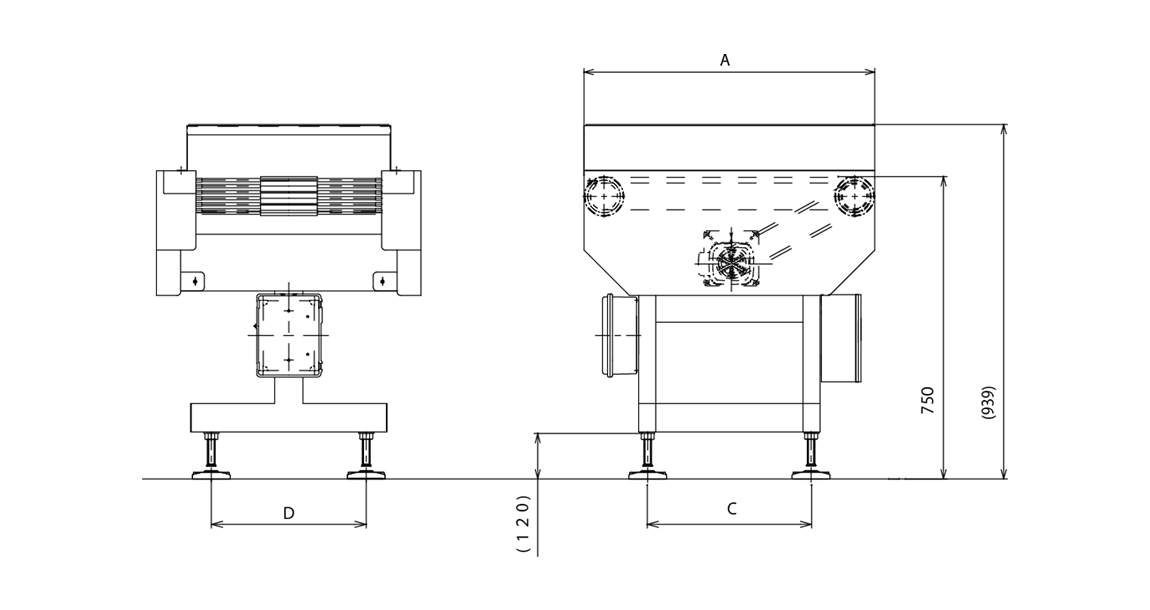

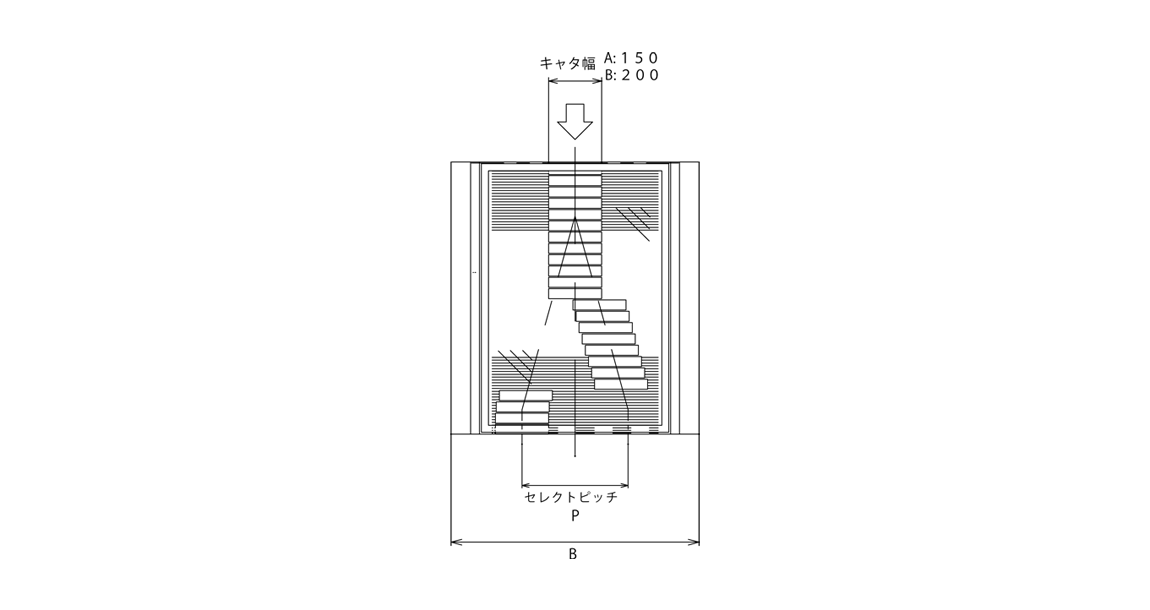

Outline Drawings
Dimensions list
| Caterpillar width | Pitch | Dimensions | ||
|---|---|---|---|---|
| A | B | C | ||
| 150 | 300 | 770 | 700 | 436 |
| 400 | 1090 | 810 | 685 | |
| 500 | 1090 | 910 | 685 | |
| 200 | 400 | 1090 | 860 | 685 |
| 500 | 1090 | 960 | 685 | |
| 600 | 1580 | 1060 | 1166 | |
Unit(mm)
